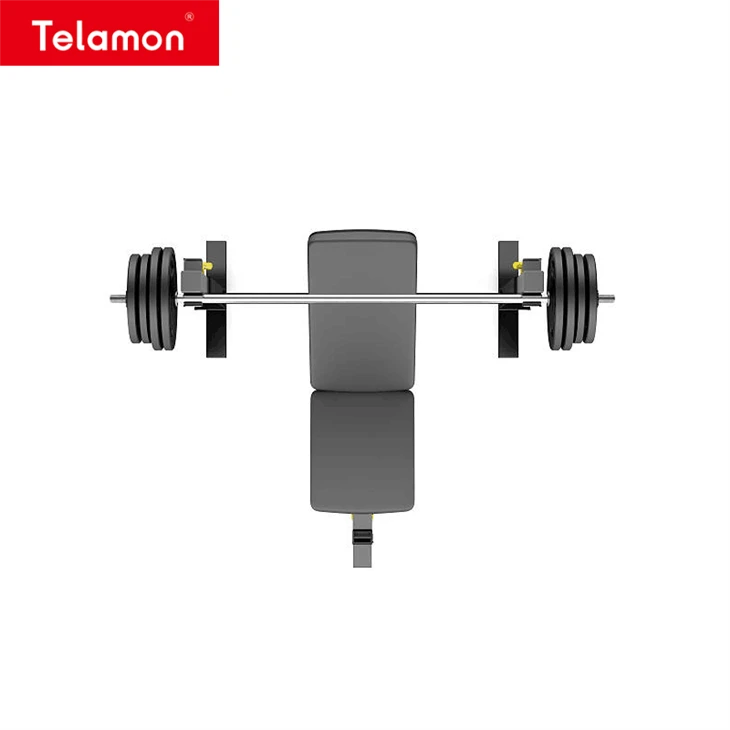

Adjustable Bench With Rack



1. Metal frame and ergonomic design

The evolution of modern home fitness equipment has always revolved around space efficiency and functional integration.

Dumbbell benches supported by a steel main frame usually adopt a four-column structure with a cross base. This design keeps the weight within 25 kg while maintaining stability.

Through finite element analysis and testing, the engineering team has enabled the single-side bracket to carry a dynamic load of 200 kg, fully covering the needs of ordinary trainers.



2. The angle adjustment mechanism is the core component of this type of equipment.

The precision-machined ratchet buckle system, combined with the adjustment rod with anti-slip texture, allows users to achieve precise positioning in seven gears between 15° and 85°.

In the fly training mode, the 30° inclination can effectively stimulate the upper bundle of the hamstrings; when performing supine crunches, the reverse 15° negative angle setting can enhance the eccentric contraction of the rectus abdominis.

This multi-dimensional adjustment capability makes it possible for a single device to replace multiple professional equipment.



3. The contact area between the non-slip rubber feet and the ground has been carefully calculated, which will not damage the wooden floor and can effectively prevent the machine from sliding.

The measured data shows that in the bench press, when the barbell produces a vertical pressure of 45 kg, the displacement of the machine does not exceed 3 mm.

For apartment environments with a floor height of less than 2.4 meters, the height design of the top of the machine 1.1 meters from the ground ensures exercise safety without causing a sense of spatial oppression.
